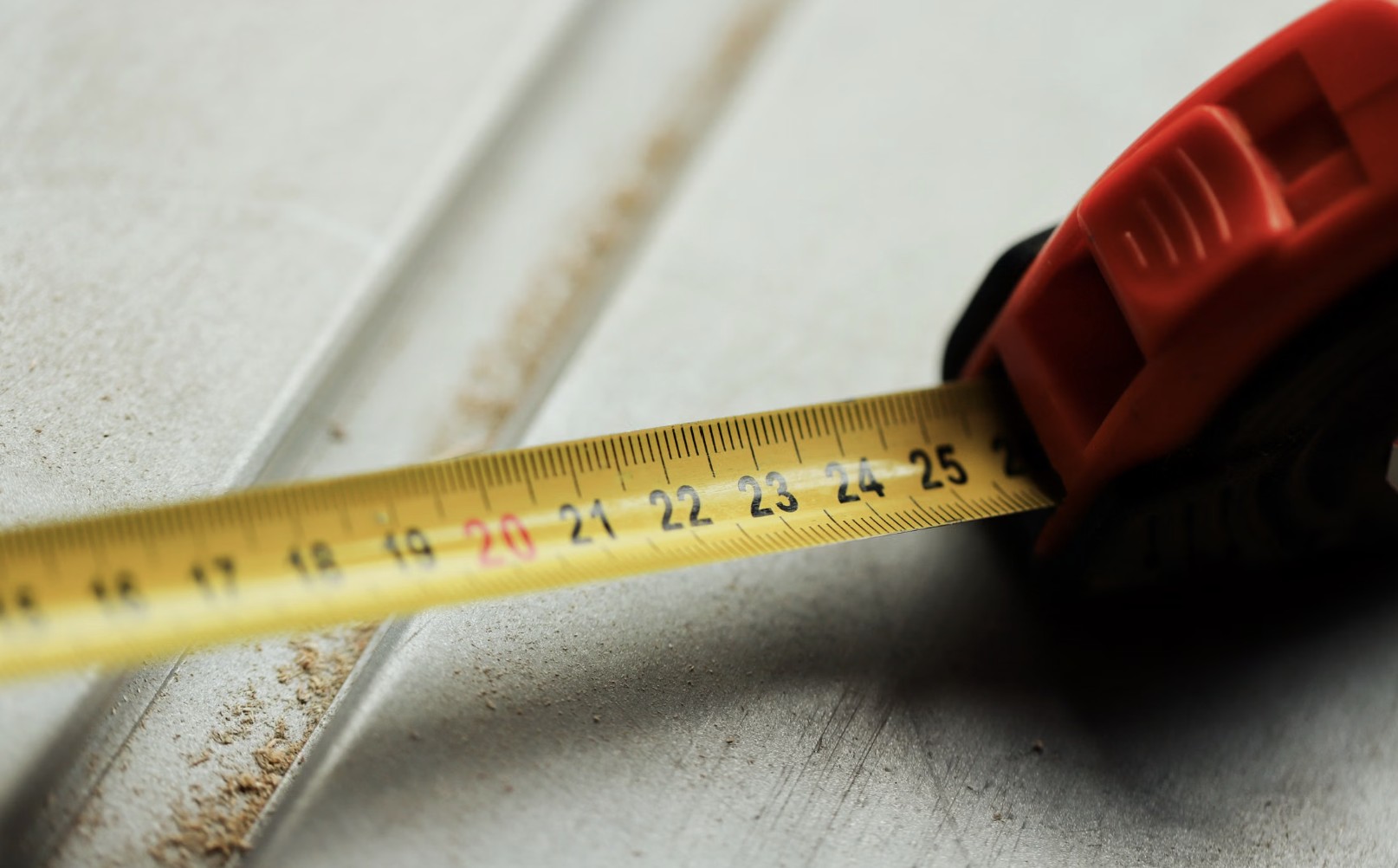

The black diamonds on a tape measure mark 19.2-inch spacing. They are not a misprint, not decoration, and not a factory flaw. You will usually spot the first one at 19.2 inches, just before the 20-inch line, then again every so often down the blade. Most people glance at them and assume the tape is defective. The interesting part is why 19.2 inches is a number anyone bothered to print in the first place, and once you know it, you start seeing those little diamonds on nearly every quality tape in the drawer.
What the Black Diamond on a Tape Measure Actually Marks
The diamonds fall at 19.2-inch intervals. That same number gets written as 19 3/16″ on some blades, which is where the odd fractions in people’s heads come from. The first diamond lands at 19.2 inches. Then they keep going, at roughly 38.4, 57.6, 76.8, and 96 inches.
That last number is the tell. Ninety-six inches is eight feet, and five diamonds land evenly across that run. The math is plain: 96 divided by 5 equals 19.2. So across a standard 8-foot panel or framing bay, the diamonds give you five equal spaces.
They are easy to miss. On most tapes the diamonds are solid black, unlabeled, and small, so they blend into the clutter of fractions and numbers. No little “19.2” printed next to them, no arrow. Just a quiet diamond shape where you would not expect one.
Why 19.2-Inch Spacing Exists Instead of 16
Here is the logic behind the weird number. An 8-foot run divides into five spaces at 19.2 inches, but into six spaces at 16 inches. Fewer spaces means fewer framing members. So a 19.2-inch layout uses one fewer joist, stud, or rafter per 8 feet than a 16-inch layout does.
One board saved every eight feet adds up fast on a long floor or wall. Less material, less labor, less weight to haul. That is the whole appeal.
The spacing shows up often with engineered joists and trusses rated for wider runs, like I-joist floor systems. One important caveat though: wider spacing is only valid where the member and its span rating actually allow it. It is not a free swap you can drop onto any 16-inch job. The building plan and your local code decide what spacing is acceptable, so check those before you stretch anything out.
How the Black Diamonds Differ From the Red 16-Inch Numbers
Tape measures carry a second spacing system, and it is the one most people already know. Those red numbers or red boxes mark every 16 inches, the standard for ordinary stud and joist centers. Red for 16-inch on center, black diamonds for 19.2-inch on center. Two separate systems, both printed on the same blade.
It is worth keeping them straight on a job. If your plan calls for 16-inch centers, you follow the red marks and ignore the diamonds completely. If it calls for 19.2, you work off the diamonds. Mixing them up mid-layout is the kind of mistake that is annoying to catch after the subfloor is down.
How to Use the Diamond Marks on a Real Layout
The first time I noticed the diamonds was on a borrowed tape, and I genuinely thought the thing was printed wrong. Little black shapes where no number should be. I almost mentioned it to the guy who lent it to me, which would have been embarrassing in hindsight.
Using them is simple once you trust them. Hook the tape at the end of the rim joist or bottom plate, then pull it along the full length of the run. Mark the center of each framing member right at each diamond.
The key habit is keeping the tape running the whole length rather than measuring one member to the next. Measuring piece by piece lets small errors stack up, and by the far end your spacing has drifted. One continuous pull keeps every mark honest.
Before any of that, confirm what spacing the project actually requires. Read the plan, not the tape. The diamonds are a tool for 19.2-inch work, not a suggestion to use it.
A Small Mark Worth Knowing
The black diamond is a quiet shortcut built for long runs, hiding in plain sight on a tool you have handled a hundred times. If you like spotting the clever little details on everyday objects, there are plenty of surprising uses for household items in the same vein. Now that you know the diamond marks 19.2 inches, you will catch it on most quality tapes. Five diamonds across eight feet, one fewer board to carry.
